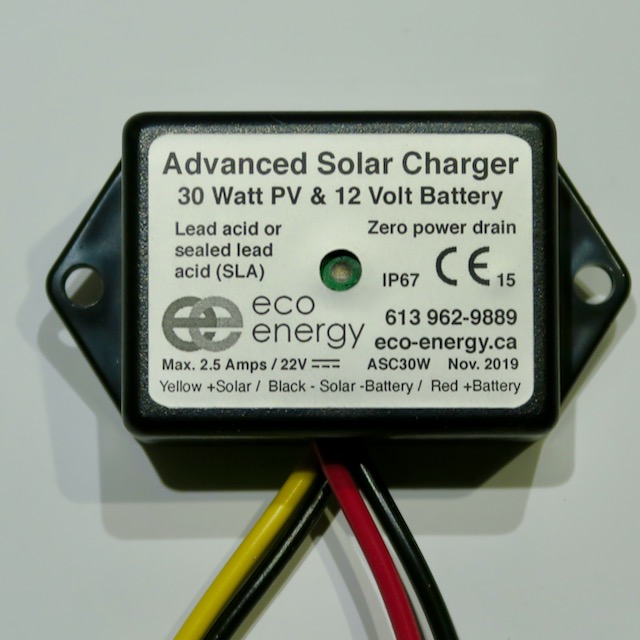

S2.5 Control
S2.5 / ASC30W
  • 2.5 Amp
  • 6 or 12 Volt
Features
  • 5 year warranty
  • Automatic night time shutdown
  • Temperature compensation
  • Fully encapsulated in epoxy potting
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case ABS case, completely sealed in epoxy
Weight 50 g / 2oz.
Size (H x W x D) 3.8 x 7.0 x 3.1 cm / 1.5 x 2.75 x 1.3 in.
Wire 18 AWG, 15 cm / 6 in.
Solar LED Charging
Electrical Specifications
Voltage configurations 12 volt (custom voltages from 6 to 20 volts)
Consumption 7 mA daylight only, 0.5mA when in standby, night time 0 mA
Maximum input 22 volts DC
Maximum charging current 2.5 Amps DC
Typical charging set points 14.2 volts off, 13.3 volts resume. Temperature compensated
Regulation method On / Off, Positive side switching
Options
  • Custom voltage setpoints
  • Custom wire lead lengths
Purchasing
  • $38 USD
  • Contact us or one of our retailers to order
