3amps
L20
  • 20 Amp, 40 Amp, 60 Amp
  • 12 or 24 Volts
  • 60 sec. time delay
  • Expand with 20 Amp Slave

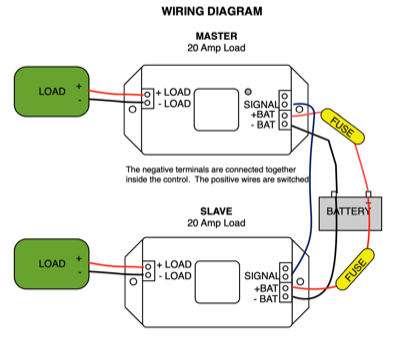

Wiring Diagram
Stacks Image 765
Features
  • 5 year warranty
  • Temperature compensation
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case Stainless steel
Weight 440 grams / 15.6 oz.
Size (H x W x D) 8 x 14 x 4.5 cm / 3.125 x 5.5 x 1.75 in.
Terminals 12-24 AWG
Power LED 1 flash power on
Load LED 1 flash voltage low, 2 flashes load disconnected
Electrical Specifications
Voltage configurations 12 or 24 volts (custom voltages from 10 to 36 volts)
Consumption Standby - 0.6 mA, On - 2.3 mA
Maximum input 25 volts (12V control), 50 volts (24V control)
Maximum load 20 Amps DC
Typical load set points 13.0 Volts On: 12.0 Volts Off, 60 seconds at or beyond setpoint / 26.0V On, 24.0V Off
Options
  • Temperature compensation off
  • Custom voltage setpoints
  • Custom time delay
Purchasing
  • $149 USD
  • Contact us or one of our retailers to order
