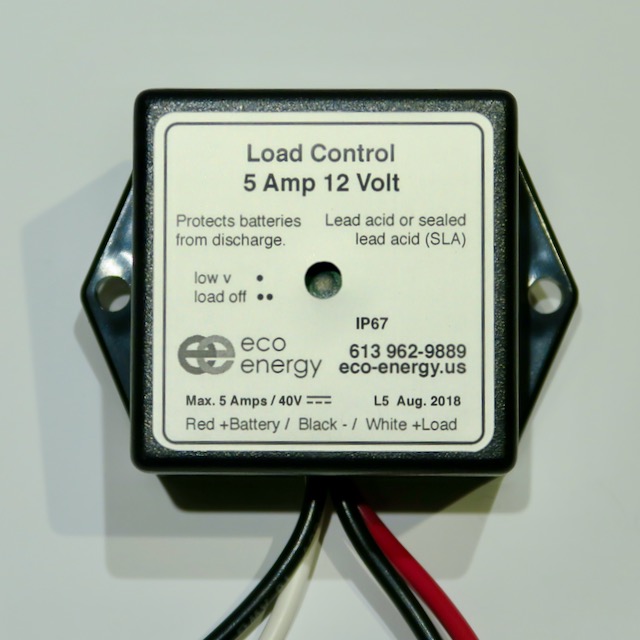

L5 Control
L5
  • 5 Amp
  • 12 or 24 Volts
  • 60 sec. time delay
Features
  • 5 year warranty
  • Temperature compensation
  • Fully encapsulated in epoxy potting
  • Manufactured with solar power
  • Designed and built in North America
General Specifications
Temperature range -40°C to 50°C / -40°F to 120°F
Case ABS case, completely sealed in epoxy
Weight 100 grams / 3.5 oz.
Size (H x W x D) 5.1 x 5.1 x 3.8 cm / 2 x 2 x 1.5 in. (3 inches wide with the tabs)
Wire 16 gauge leads, 15 cm (6 in)
Load LED 1 flash voltage low, 2 flashes load disconnected
Electrical Specifications
Voltage configurations 12 or 24 volts (custom voltages from 10 to 36 volts)
Consumption Standby - 0.6 mA, On - 2.3 mA
Maximum input 40 volts (12V control), 60V (24V control)
Maximum load current 5 Amps DC
Typical load set points 13.0 Volts On: 12.0 Volts Off, 60 seconds at or beyond setpoint (custom voltages available)
Options
  • Temperature compensation off
  • Custom voltage setpoints
  • Custom time delay
  • Custom wire lead lengths
Purchasing
  • $49 USD
  • Contact us or one of our retailers to order
