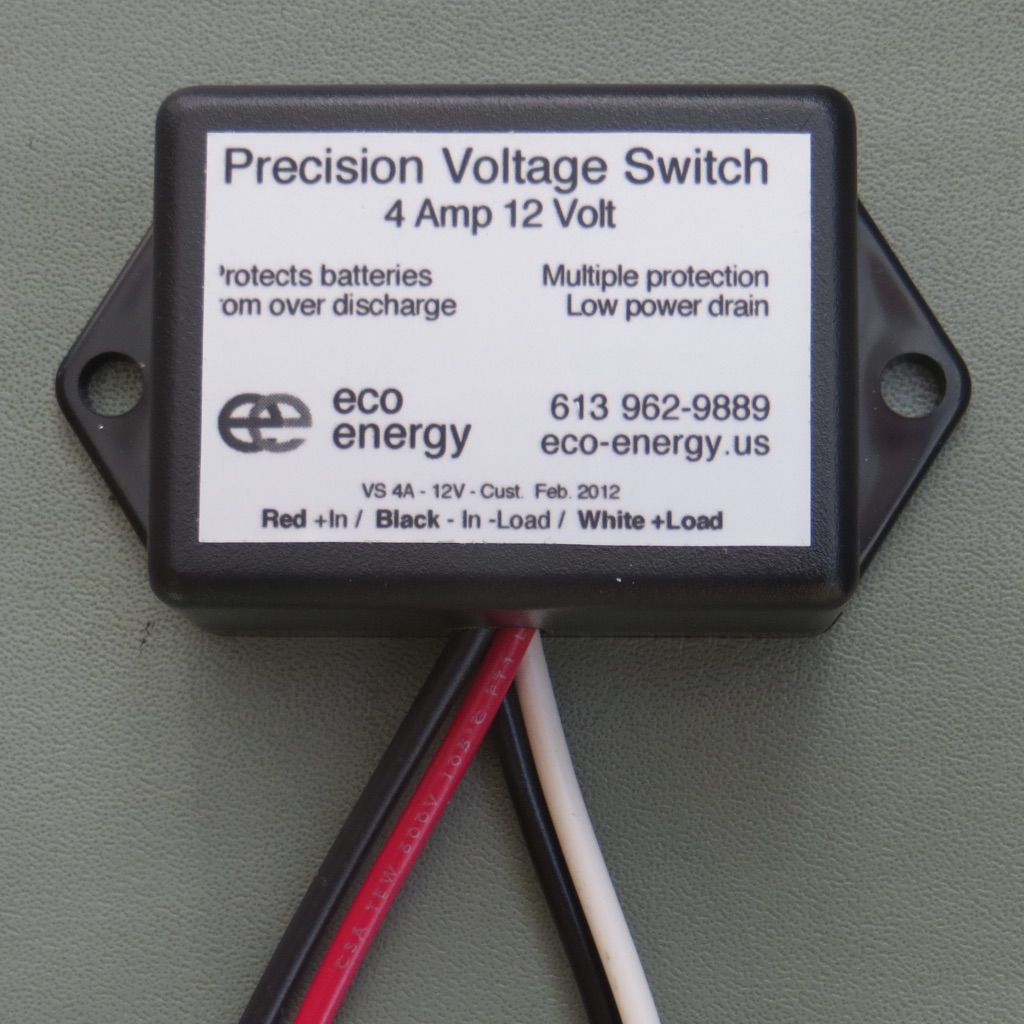

VS4A
- 4 Amp
- 6, 12 or 24 volt
- 1 sec. time delay
Features
- 5 year warranty
- Fully encapsulated in epoxy potting
- Manufactured with solar power
- Designed and built in North America
General Specifications
| Temperature range | -40°C to 50°C / -40°F to 120°F |
| Case | ABS case, sealed in epoxy |
| Weight | 50 g / 2oz. |
| Size (H x W x D) | 3.8 x 7.0 x 3.1 cm / 1.5 x 2.75 x 1.3 in. |
| Wire | 18 gauge leads, 15 cm (6 in) |
Electrical Specifications
| Voltage configurations | 12 volt (custom voltages from 6 to 20 volts) |
| Consumption | 0.2 mA standby, 2.3 mA when on |
| Maximum input | 39 Volts |
| Maximum current | 4 Amps |
| Typical load set points | 13.3 Volts On: 12.0 Volts Off (optional adjustment on back) |
Options
- Custom voltage setpoints
- Custom wire lead lengths
Purchasing
- $44 USD
- Contact us or one of our retailers to order
